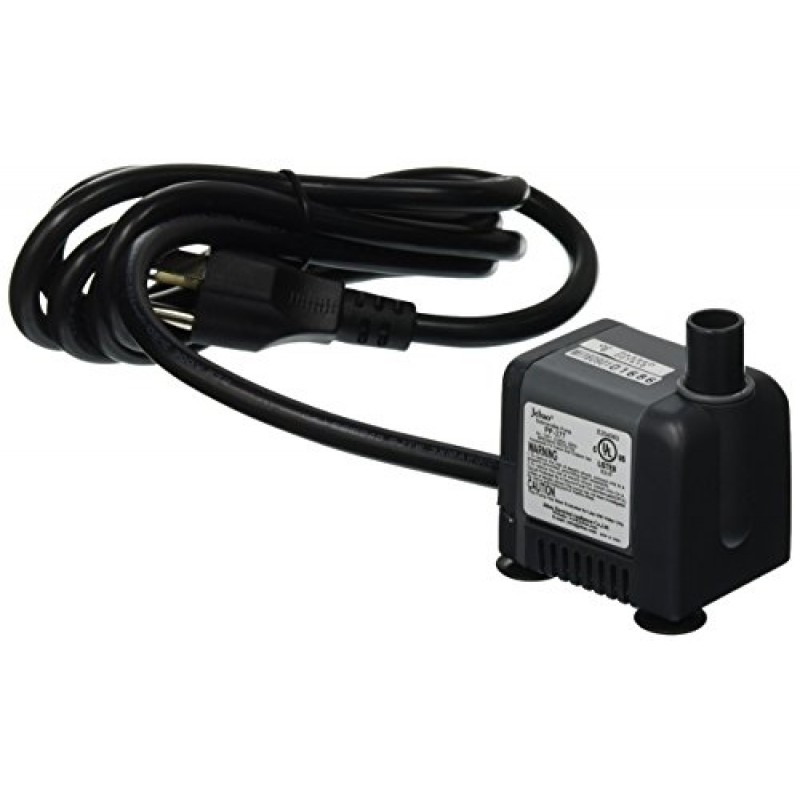

Jebao PP-377 contains no seals or messy oils. Pump employs the latest technology in hysterisis style pumps. For submersible operation only. Very powerful unit in a tiny size. Uses 5/16" OR 1/2" ID tubing , normally stocked item at your local hardware store. Built-in flow control with four settings . Max lift 25.5" max Flow 105 GPH
  • Max flow rate: 105 gal/hour (400 liters/hour)
  • Max head: 26"
  • Pump size: 2"x1.5"x2"(h)
  • 6" round electrical cord with 3-prong plug

Write a review

Note: HTML is not translated!
    Bad           Good

Jebao PP-377 105 GPH Submersible Fountain Pond Water Pump 5W

  • Brand: Jebao
  • Product Code: PP-377
  • Availability: 20
  • $55.99



Related Products

Jebao PP-333LV+LED Submersible Fountain Pond Water Pump with LED Light, 2.5W

Jebao PP-333LV+LED Submersible Fountain Pond Water Pump with LED Light, 2.5W

Brand new in box Jebao PP333LV LED submersible pump. Pump is..

$44.03

Jebao Ap-399 Submersible, Hydroponics, Aquaponics, Fountain Pump, 264 GPH, 18W

Jebao Ap-399 Submersible, Hydroponics, Aquaponics, Fountain Pump, 264 GPH, 18W

Powerful compact pump . Hysteresis (often confused for Mag D..

$60.54

Jebao PP-333LV Submersible Fountain Pond Water Pump, 2.5W

Jebao PP-333LV Submersible Fountain Pond Water Pump, 2.5W

Plug cord comes with disconnect so cord can be passed throug..

$49.43

Dynamic Head

The effect of the Earths gravity on the "lift" or head pressure is fairly simple; for every vertical foot of distance the pump moves the water you are adding one foot of head pressure so the ratio is a 1:1 ratio. The effects of the friction, caused by water as it travels through your hose or pipes, on the total head pressure is a little more difficult to calculate especially as there are slight variations in pipe friction in different hose materials and the smoothness of the inner bore. Basically. for every ten feet of pipe through which the water has to travel travel horizontally will contribute 1 foot of head height; the ratio of the pipe friction loss is a 10:1 ratio.

Plumbing fixtures and bends and corners in your hose also increase the total head you must calculate to ensure the proper final volume from your pump. Every corner with a 90 degree elbow in your plumbing will add 1 foot of head pressure  with a 1:1 ratio. 45 degree elbows, tees and even insert couplers can all have an impact on the final flow.

If you install a pump 40 feet away from the top of your waterfall which is 6 feet above the pump and the tubing is a single run of 40 feet horizontally then you add 4 feet of head for the tubing length (the 10:1 ratio) to the 6 foot differnetial between the pump location and the final height of the waterfall so your final total dynamic head calculation would be 10 feet. This means your final volume of water flow in this water feature or application would be the volume of flow on the performance curve that equaled the gallons per hour at 16 feet. This volume will certainly be much less than the initial volume the pump can move at an open flow or a zero head.

If in the above example your 40 feet of horizontal tubing run also required 3 elbows of 90 degrees then an additional 3 feet of theoretical head would be added and your final flow result would be at 19 feet on the performance curve of the pump. In this example you would want to choose a pump that has the desired GPH rating at 9 feet of head pressure.  Tubing size is also an important factor in accounting for head pressure loss, in general you should never reduce the diameter of the tubing below what the output size of the pump is, this will drastically increase head pressure, and reduce pump performance.  For maximum pump performance, using the largest tubing that is practical is the best choice. A best practice is to use a hose with an inner diameter that is the same as your pumps outlet fitting.
