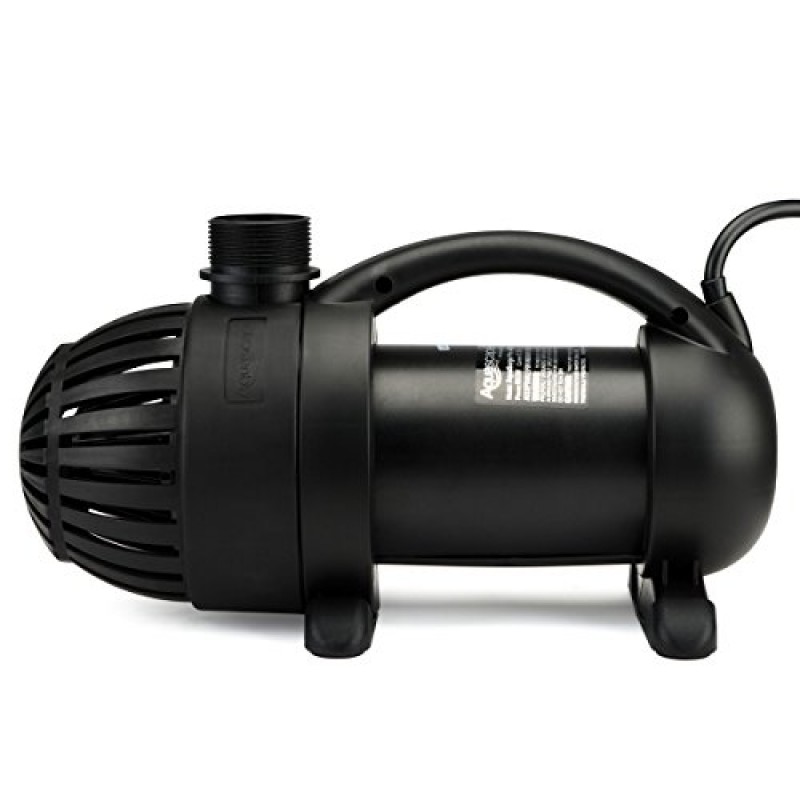

AquascapePRO AquaSurge PRO 4000-8000 Pumps 45010 Extremely energy-efficient, saving hundreds of dollars over traditional water pumps. Asynchronous motor technology provides high torque, trouble-free performance at higher head heights. Designed for use in skimmer and falls filter systems. Oil-free design prevents pond contamination. Provides years of trouble-free operation. Made for continuous use. Will not corrode or rust. Rubber feet prevent noise and vibration. Can be used vertically or horizontally. - Extremely energy-efficient, saving hundreds of dollars over traditional water pumps - Asynchronous motor technology provides high torque, trouble-free performance at higher head heights - Wireless remote controlled adjustability and ease of maintenance, makes this the pump of choice for discriminating professionals - 7793 Max GPH, 1.5 inch MPT Discharge, 660 watts, Max. head height 27.89 ft and 20 ft. cord length
  • Ideal for ponds, pondless waterfalls, and other water feature applications; pumps up to 7,793 gallons per hour (GPH)
  • Designed for use in skimmer and waterfall-filter systems; made for continuous use in either vertical or horizontal orientation
  • Energy-efficient asynchronous pump design more powerful than traditional magnetically driven pond pumps
  • Included wireless remote and receiver enable you to adjust or turn on/off pondless waterfall applications
  • Measures 12 x 5.5 x 7 inches (LxWxH); 20-foot power cord; 3-year limited warranty

Write a review

Note: HTML is not translated!
    Bad           Good

Aquascape 45010 4000-8000 Asynchronous Pump for Ponds, Pondless Waterfalls & Skimmer Filters, 7793 GPH, Black

  • Brand: Aquascape
  • Product Code: 45010
  • Availability: 20
  • $699.99



Related Products

Aquascape 45009 2000-4000 Asynchronous Pump for Ponds, Pondless Waterfalls & Skimmer Filters, 3947 GPH, Black

Aquascape 45009 2000-4000 Asynchronous Pump for Ponds, Pondless Waterfalls & Skimmer Filters, 3947 GPH, Black

The Aquascape AquaSurge PRO asynchronous skimmer and waterfa..

$559.98

Dynamic Head

The effect of the Earths gravity on the "lift" or head pressure is fairly simple; for every vertical foot of distance the pump moves the water you are adding one foot of head pressure so the ratio is a 1:1 ratio. The effects of the friction, caused by water as it travels through your hose or pipes, on the total head pressure is a little more difficult to calculate especially as there are slight variations in pipe friction in different hose materials and the smoothness of the inner bore. Basically. for every ten feet of pipe through which the water has to travel travel horizontally will contribute 1 foot of head height; the ratio of the pipe friction loss is a 10:1 ratio.

Plumbing fixtures and bends and corners in your hose also increase the total head you must calculate to ensure the proper final volume from your pump. Every corner with a 90 degree elbow in your plumbing will add 1 foot of head pressure  with a 1:1 ratio. 45 degree elbows, tees and even insert couplers can all have an impact on the final flow.

If you install a pump 40 feet away from the top of your waterfall which is 6 feet above the pump and the tubing is a single run of 40 feet horizontally then you add 4 feet of head for the tubing length (the 10:1 ratio) to the 6 foot differnetial between the pump location and the final height of the waterfall so your final total dynamic head calculation would be 10 feet. This means your final volume of water flow in this water feature or application would be the volume of flow on the performance curve that equaled the gallons per hour at 16 feet. This volume will certainly be much less than the initial volume the pump can move at an open flow or a zero head.

If in the above example your 40 feet of horizontal tubing run also required 3 elbows of 90 degrees then an additional 3 feet of theoretical head would be added and your final flow result would be at 19 feet on the performance curve of the pump. In this example you would want to choose a pump that has the desired GPH rating at 9 feet of head pressure.  Tubing size is also an important factor in accounting for head pressure loss, in general you should never reduce the diameter of the tubing below what the output size of the pump is, this will drastically increase head pressure, and reduce pump performance.  For maximum pump performance, using the largest tubing that is practical is the best choice. A best practice is to use a hose with an inner diameter that is the same as your pumps outlet fitting.
