• EcoSeries 1/2 HP Floating Fountain, 100' Power Cord, 3 Patterns & Control Panel

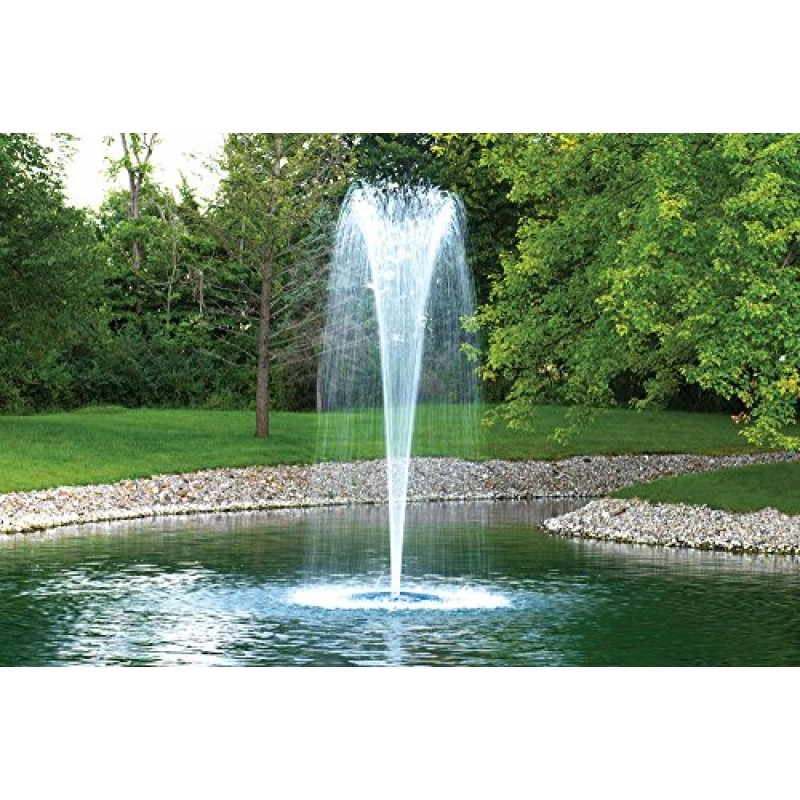

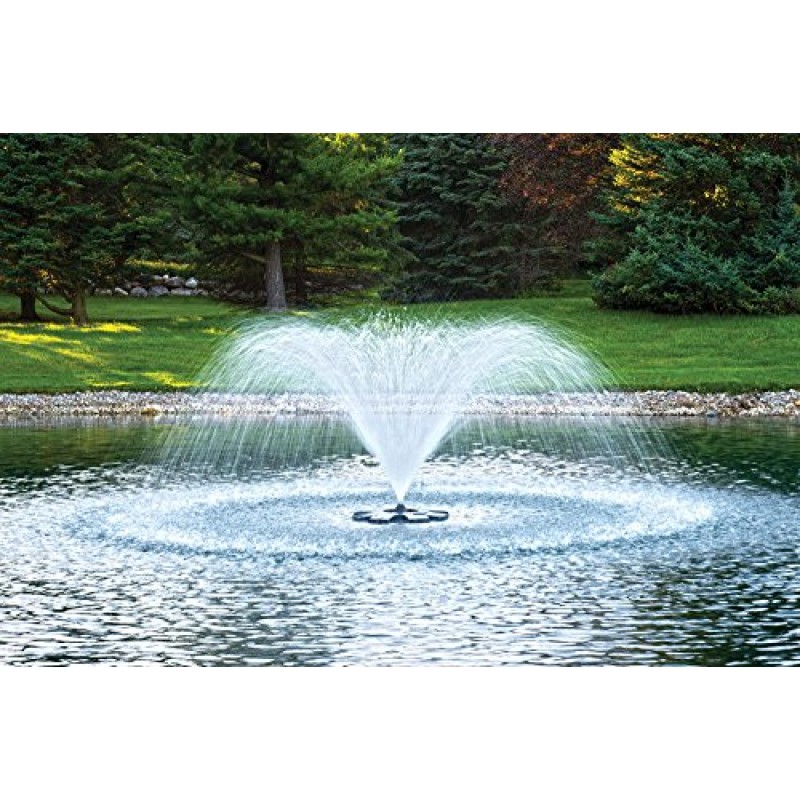

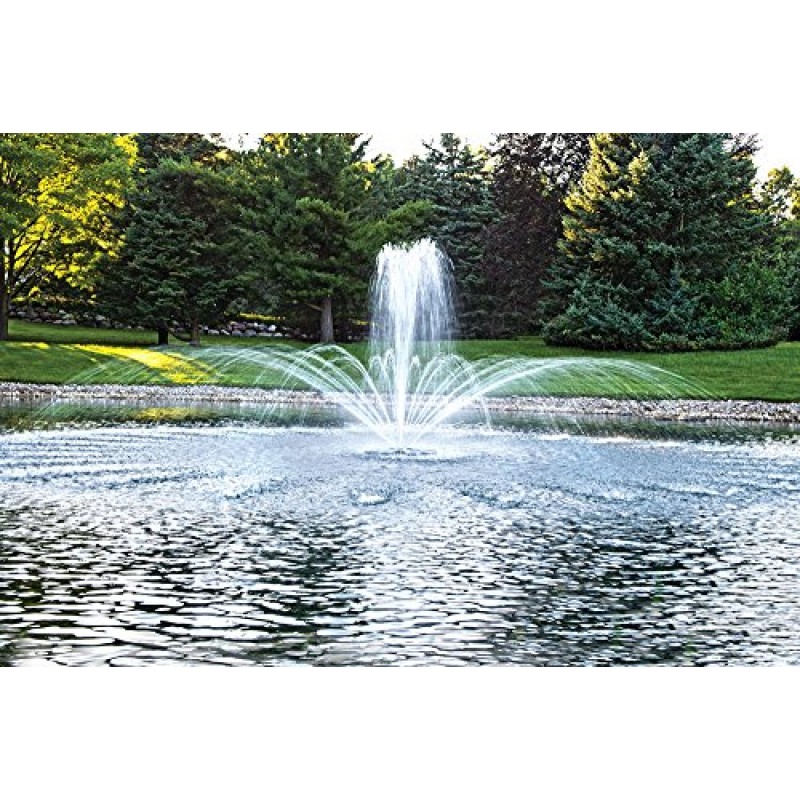

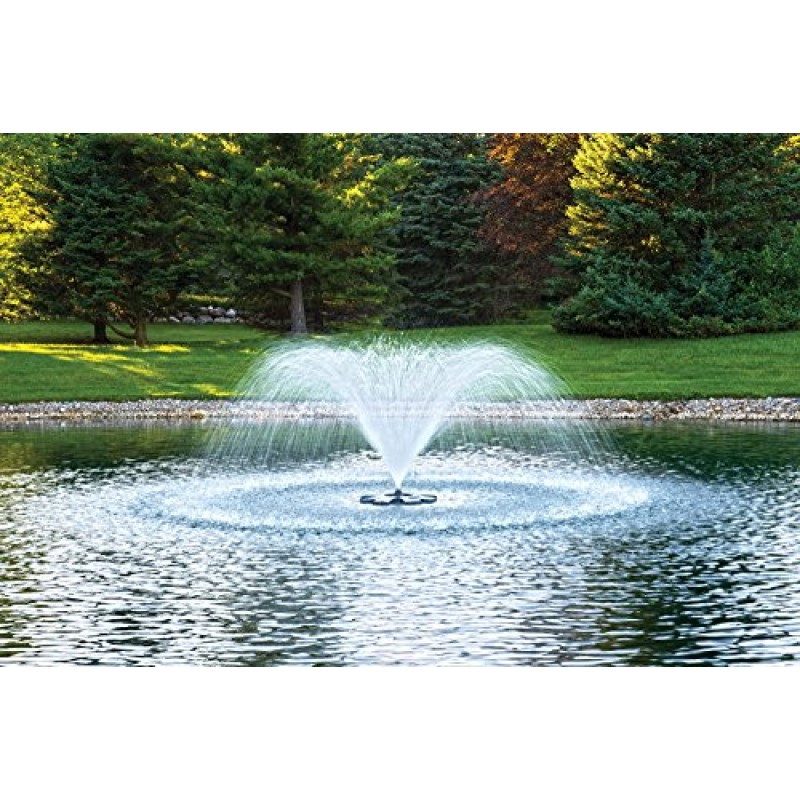

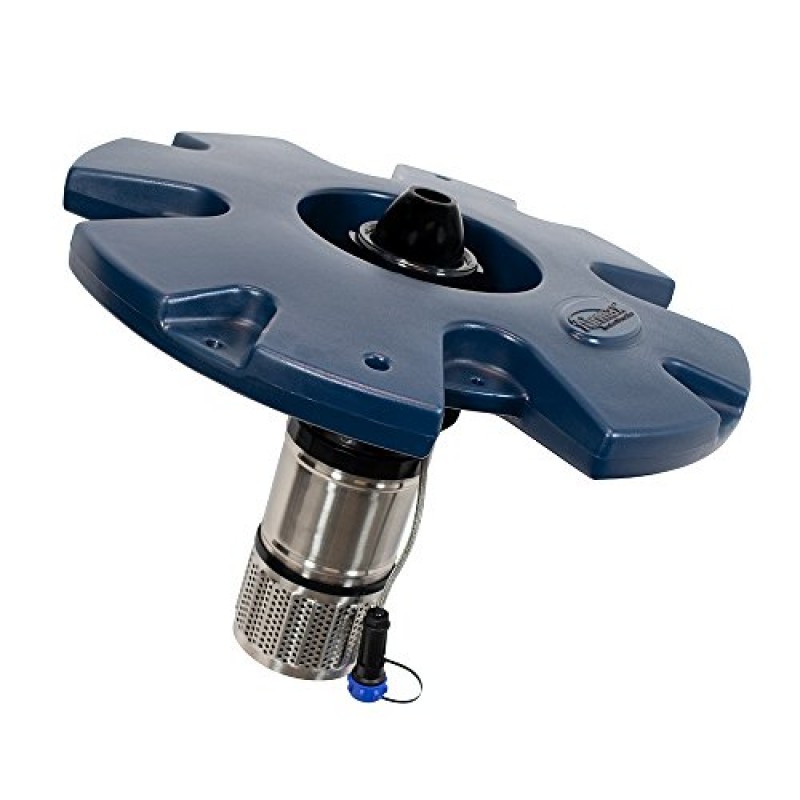

The EcoSeries Floating Fountain showcases beautiful industry leading spray patterns that outmatch other 3/4 HP and 1 HP fountains. The EcoSeries Fountain operates in as little as 24 inches of depth and includes an energy efficient 1/2 HP motor, 3 spray patterns, control panel and comes with 100' of power cord. The EcoSeries Fountain includes a 3 Year Warranty. Easy To Install The EcoSeries 1/2 HP Fountain was designed to be easy to assemble. No tools are required for assembly or when changing nozzles. The EcoSeries Fountain is equipped with a quick disconnect cord for easy removal of the motor and float. Energy Efficient The 1/2 HP motor is energy efficient drawing 6 Amps, 690 watts on 120V power. The asynchronous motor, silicon carbide shaft bearing and ceramic shaft are housed in a stainless steel body with suction screen. Spray Patterns The EcoSeries Fountain comes standard with 3 spray patterns: Classic, Trumpet and Crown & Trumpet. Premium Nozzles are available in Single Arch and Double Arch. Control Panel The included control panel is set-up to run your fountain and the optional LED Light Set. Lights are not included with this purchase.
  • Largest spray patterns in the market for a 1/2hp fountain
  • Includes 3 interchangeable nozzles
  • Easy to install
  • Energy efficient
  • 3 year warranty

Write a review

Note: HTML is not translated!
    Bad           Good

EcoSeries 1/2 HP Floating Fountain, 100' Power Cord, 3 Patterns & Control Panel

  • $3,599.99



Dynamic Head

The effect of the Earths gravity on the "lift" or head pressure is fairly simple; for every vertical foot of distance the pump moves the water you are adding one foot of head pressure so the ratio is a 1:1 ratio. The effects of the friction, caused by water as it travels through your hose or pipes, on the total head pressure is a little more difficult to calculate especially as there are slight variations in pipe friction in different hose materials and the smoothness of the inner bore. Basically. for every ten feet of pipe through which the water has to travel travel horizontally will contribute 1 foot of head height; the ratio of the pipe friction loss is a 10:1 ratio.

Plumbing fixtures and bends and corners in your hose also increase the total head you must calculate to ensure the proper final volume from your pump. Every corner with a 90 degree elbow in your plumbing will add 1 foot of head pressure  with a 1:1 ratio. 45 degree elbows, tees and even insert couplers can all have an impact on the final flow.

If you install a pump 40 feet away from the top of your waterfall which is 6 feet above the pump and the tubing is a single run of 40 feet horizontally then you add 4 feet of head for the tubing length (the 10:1 ratio) to the 6 foot differnetial between the pump location and the final height of the waterfall so your final total dynamic head calculation would be 10 feet. This means your final volume of water flow in this water feature or application would be the volume of flow on the performance curve that equaled the gallons per hour at 16 feet. This volume will certainly be much less than the initial volume the pump can move at an open flow or a zero head.

If in the above example your 40 feet of horizontal tubing run also required 3 elbows of 90 degrees then an additional 3 feet of theoretical head would be added and your final flow result would be at 19 feet on the performance curve of the pump. In this example you would want to choose a pump that has the desired GPH rating at 9 feet of head pressure.  Tubing size is also an important factor in accounting for head pressure loss, in general you should never reduce the diameter of the tubing below what the output size of the pump is, this will drastically increase head pressure, and reduce pump performance.  For maximum pump performance, using the largest tubing that is practical is the best choice. A best practice is to use a hose with an inner diameter that is the same as your pumps outlet fitting.
