CWS100 Features: -Cast-iron convertible well jet pump. -For wells up to 90 feet in depth. -Pressure switch is pre-set at 30-50 PSI for automatic operation. -Dedicated priming port for volute filling. -Durable cast-iron volute. -Engine HP: 1. Material: -Cast iron. Hardware Material: -Stainless steel. Number of Items Included: -2. Frequency: -60 Hertz. Generic Specifications: -High efficiency square flange motor (factory wired for 120 volts). -Voltage: 120V/240V. Dimensions: Overall Height - Top to Bottom: -8.75". Overall Width - Side to Side: -9". Overall Depth - Front to Back: -14". Overall Product Weight: -41.7 lbs.
  • Pumps up to 560-Gallon per hour
  • Dual voltage (120-240-Volt) high efficiency square flanged motor is factory wired for 120-Volt.
  • Dedicated priming port for volute filling
  • Durable cast iron volute
  • 3/4-Inch NPT discharge with 1-1/4-Inch discharge and 1-Inch drive
  • 1 hp; max. Flow rate is 588 gallons per hour; (50 psi)
  • 3/4 in. Npt discharge with 1-1/4 in. Npt suction and 1 in. Drive
  • Dual voltage (120V/240V) high efficiency square flange motor (factory set for 240V)
  • Pressure switch is pre-set at 30-50 psi for automatic operation
  • Durable cast iron volute with dedicated priming port for volute filling

Write a review

Note: HTML is not translated!
    Bad           Good

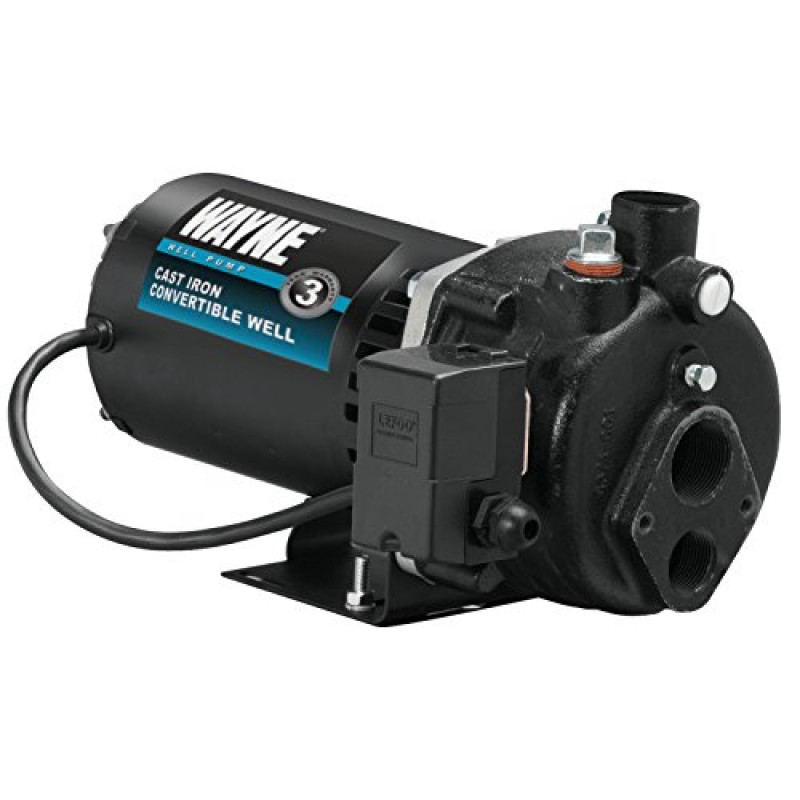

Wayne CWS100 1 HP Cast Iron Convertible Well Jet Pump for Wells Up to 90-Feet
